This is the first front disc mower with an actively driven swath former, designed for both narrow swathing and wide spreading.
With the option of 3 different swath widths (1.00, 1.15 and 1.30m) and wide spreading up to 2.20m, this machine offers exactly the flexibility that most farmers are looking for. Narrow swaths that will go well in-between the tractor wheels, or wide spreading for fast wilting of crop.
Changing between different swath widths is intuitively done in very little time– no tools required.
Model
DM4028 / DM4032 / DM4032S
Working width
2.80m / 3.20m / 3.20m
Weight
670Kg / 690Kg / 855kg
Power Req.
33kW(45hp) / 40kW(55 hp) / 45kW(60 hp)
Drive
Two-Speed 750 or 1000 rpm
Unique and patented actively driven swathing auger system.
3 different swath widths (1.00, 1.15, and 1.30m)
Easy and intuitive setting of swath widths
Low weight – low power consumption
Two speed gearbox 750/1000 rpm

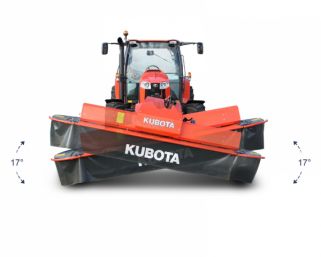

Excellent ground adaptation range
Interested in the Kubota DM4032S Plain Disk Mower - Front Mount?
