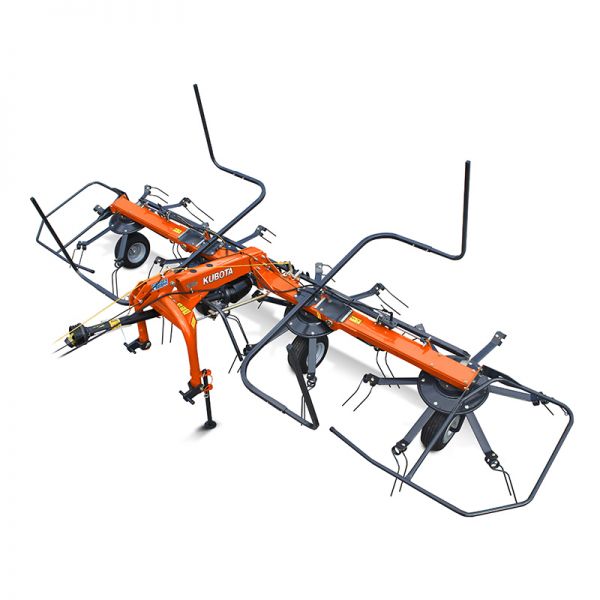

Kubota TE4046 / TE4052 / TE6060 / TE8080 Tedders - Fully Mounted

Overview

Kubota offers 4 versions of compact tedders with low maintenance requirements and a working-width ranging from 4.6 to 8.05m. Maintenance-friendly features include 500 mm rotor plates and an easy-to- maintain gearbox. All tedders can be adjusted centrally to move the tedder to the desired position for border tedding.

TE8080 is fitted with a HexaLink finger clutch system on the two outer rotors, allowing these to turn into a 180° position for a reduced transport height and width of 3.15m and 2.9m respectively.

Model	TE4046 / TE4052 / TE6060 / TE8080
Working width	4.60m / 5.20m / 6.05m / 8.05m
Weight	500 kg / 530 kg / 650 kg / 960 kg
Rotors/ Tines per rotor	4 with 6 / 4 with 6 / 6 with 5 / 8 with 5
Valve with float position on tractor is needed

Low maintenance CompactLine gearbox with only one grease nipple.

Compact tedders with low weight and power requirements.

Rotor plate dimension of 500m.

Double bearings from pinion to crown wheel guarantee maximum longevity of the driveline.

Easy setting of spreading angle through simple three-way adjustment of wheel height.

HexaLink finger clutch on TE8080 for very compact transport dimensions.

Oscillation dampers for even spreading pattern standard on TE6060 and TE8080.

Interested in the Kubota TE4046 / TE4052 / TE6060 / TE8080 Tedders - Fully Mounted?

Kubota has an extensive range of CompactLine and ProLine tedders, with working widths ranging from 4.60m to 13.30m. The Kubota tedders are distinguished by the oilbath gearbox, the Super-C tines, the strong mainframe and their easy maintenance. Super-C Tine Rotor Tines with symetric tines. Up to 10mm spring steel. 80mm coil diameter.Flat steel tines.Pick-up angle easily adjusted into 3 different positions. Heavy Duty Main Frame Box shaped mainframe with max rigidity.Double universal joints for efficient transfer of power. Greasable pivoting points Maintenance-Free ProLine Gearbox Permanent oil lubrication. Double bearings on both sides of drive shaft. Gearbox is not part of main frame â€“ less torque. Dust and water proof, no corrosion.
